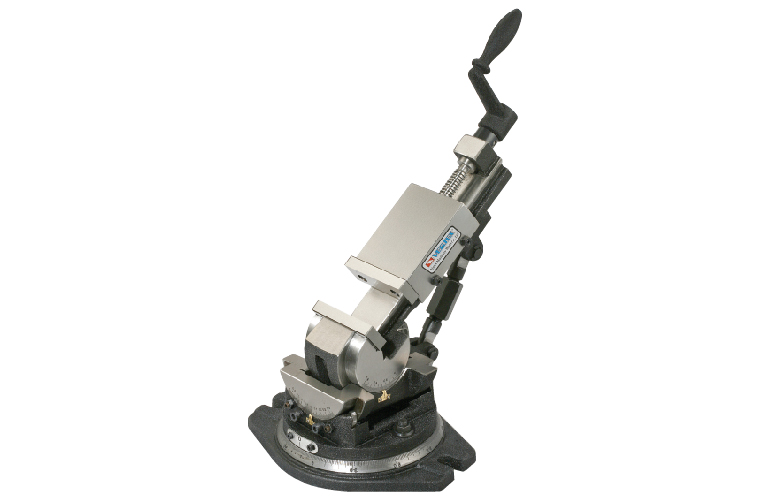

3 WAY ANGLE VICE
A 3-way angle vise is a mechanical clamping device that secures a workpiece and allows for it to be positioned at a desired angle in three dimensions: by a 360-degree swivel base, a 90-degree vertical tilt, and a 45-degree left and right tilt. This allows for precise settings in milling, drilling, and grinding operations, keeping the workpiece steady at any compound angle.
Key features
- Three-dimensional adjustment: The vise allows for setting angles in three directions:
- Swivel base: Rotates 360∘ and has degree markings.
- Vertical tilt: Can be elevated from horizontal to vertical 90∘
- Lateral tilt: Can be tilted from 0∘ to 45∘ to the left and right on its lower base.
- Secure locking: It can be securely locked into place after the workpiece is positioned.
- Precision: These vises are manufactured for high accuracy, with features like hardened and ground jaws and precision-ground slides for parallelism and squareness, often within 0.025𝑚𝑚 to 0.01𝑚𝑚 per
100𝑚𝑚
- Material: Typically constructed from high-quality cast iron for durability and rigidity.
